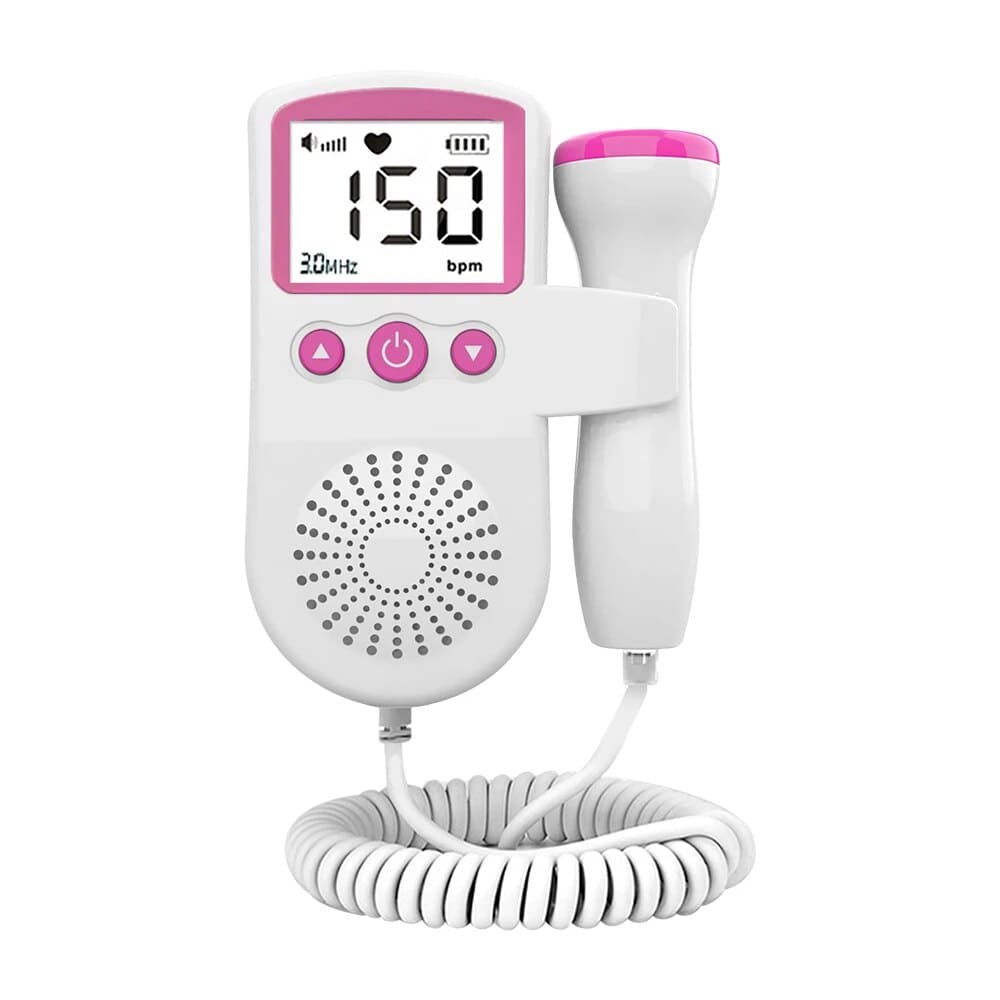

Fetal Doppler

The Fetal Doppler is a portable device for examining the fetal heart rate.

Designed for use in hospitals, offices or at home, it is equipped with a backlit LCD screen that displays heart rate values. The sound signals are transmitted by the speaker integrated in the doppler. The volume is adjustable by means of two buttons. This pocket doppler is also equipped with a connector for external listening via headphones.

3 working modes are available:
- Real time display of heart rate,
- Display of the average heart rate,
- Manual mode.

The strong points of the fetal doppler:
Economical: in addition to its attractive price, this model is powered by 1.5 V volt batteries that give it an autonomy of several hours. It turns off automatically after one minute of non-use and indicates the charge level graphically on the screen.
Lightweight and compact: it is easy to handle.

Characteristics:

Ultrasonic frequency: 3 MHz +- 10%.
Power output: <10mW/cm2SATA.
Fetal heart rate measurement range: 50 - 240 bpm.
Accuracy : +- 1bpm.
LCD screen 45 x 25 mm.

Control keys:
Power on with one button.
Volume : two adjustment keys.

Power supply : 2 batteries LR6 1.5 V.

Dimensions : 135 x 95 x 35 mm.
Weight : 500 grams approximately.

Safety standards:
Classification: Type B - IEC 60601-1-2005.
